Project Objective

hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed
Exact 1:1 scale size bathtub
Stunning modern design
A bathtub that is easier to manufacture
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed

Ideation Sketches

  • Form Exploration
  • Quick thumbnail sketches
  • 1:1 scale measurements
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed

Modeling in Fusion 360 and Solidwork

hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed

Concept Form Model

  • 1:14 scale model
  • Insured tub volume measurement
  • Rough concept sketch idea

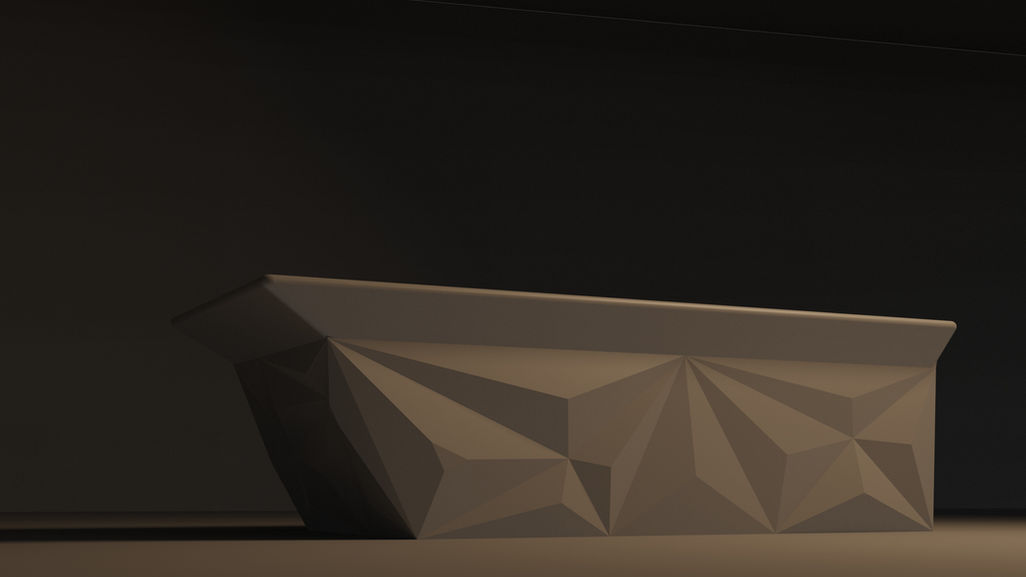

Zulum Tub

hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed

Materials List

Ash Wood
Mahogany Wood
Oak Wood
(Natural & Dark)
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed

Manufacturing

  • Easy Cast Molding for the Tub
  • CNC and/or laser cut for tub shelf
  • No Undercuts
  • Resulting in low machining cost

=

low cost.png
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed
hd-pattern-png-transparent-triangle-transparent-png-image-pattern-transparent-2048_1024_ed
When first starting this project, I already knew that I had to create a different product since I have done a project similar to this at my old college. That being said, I came up with the idea of creating a bathtub instead of the recommended chair to challenge myself on creating a bathtub design that is eye-catching and luxurious. By applying my knowledge from a product materials class that I was taking at the time, but I also challenged myself to design a tub that can be easily manufactured with no undercuts and can be machined easily. This also gave me the opportunity to test out new 3D printing materials that helped showcase my final skilled model.

Project Reflection

Final Renders


Final Model

In 1:7 scale
Marble
Quartz
Solid Surface
Black Marble

In-Context
