Zooming Through the Future!
It offers two audio modes for precise listening, whether through Bluetooth, wired headphones, or the revamped headset piece. With this feature, all recorded audio will be saved in the mobile app and/or website, allowing users easy access to replay and analyze their audio recordings.
Features

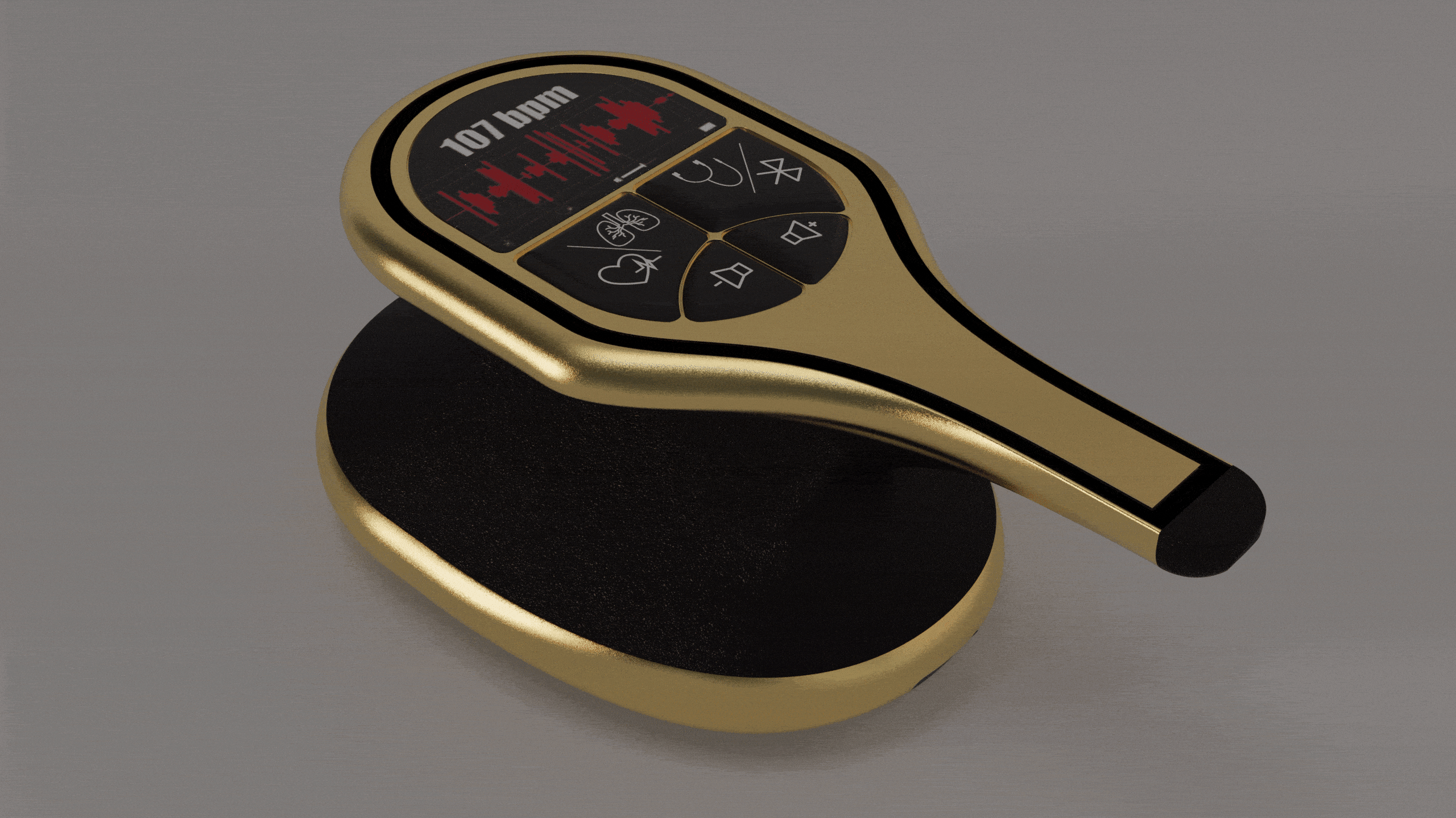

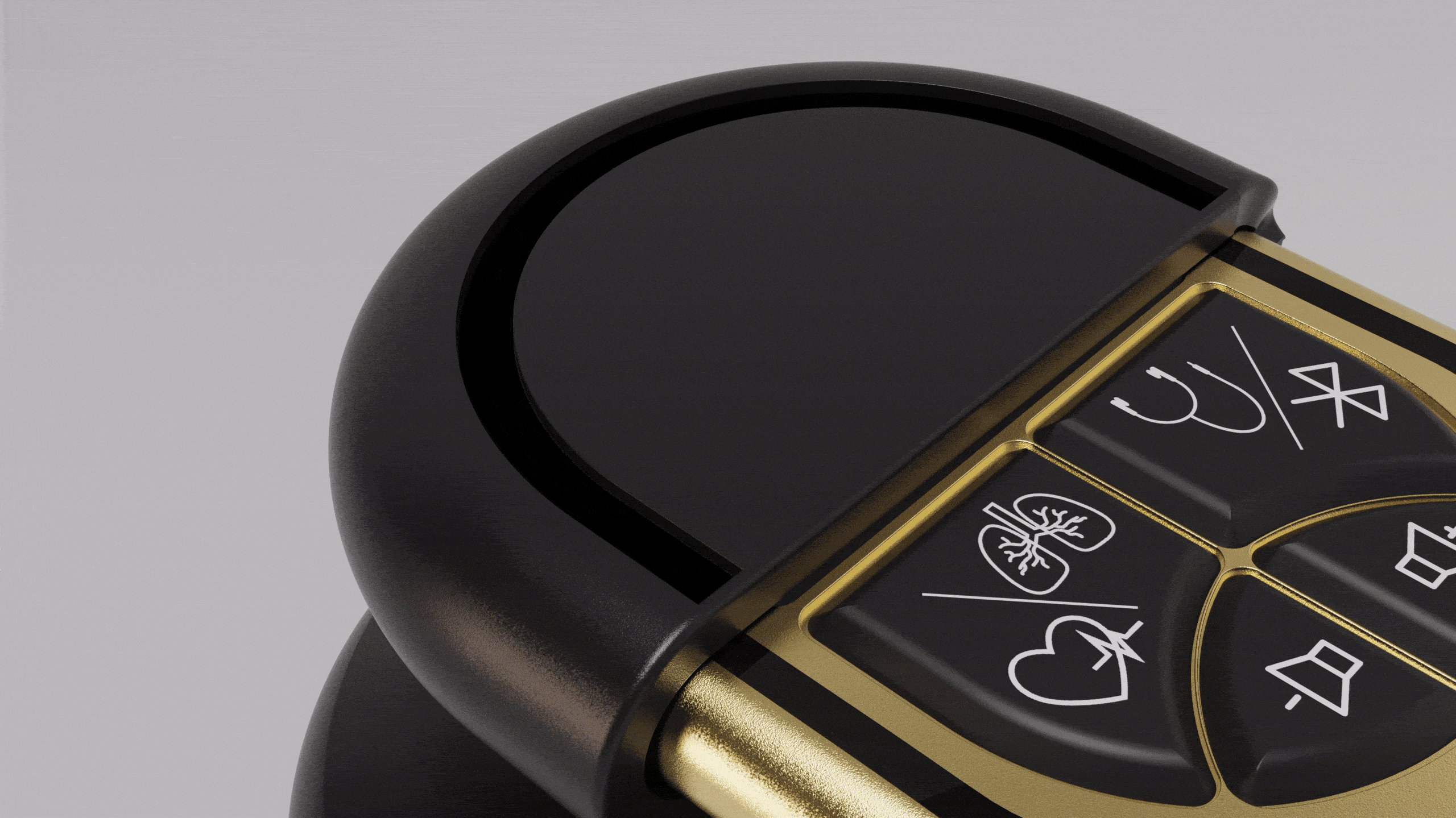

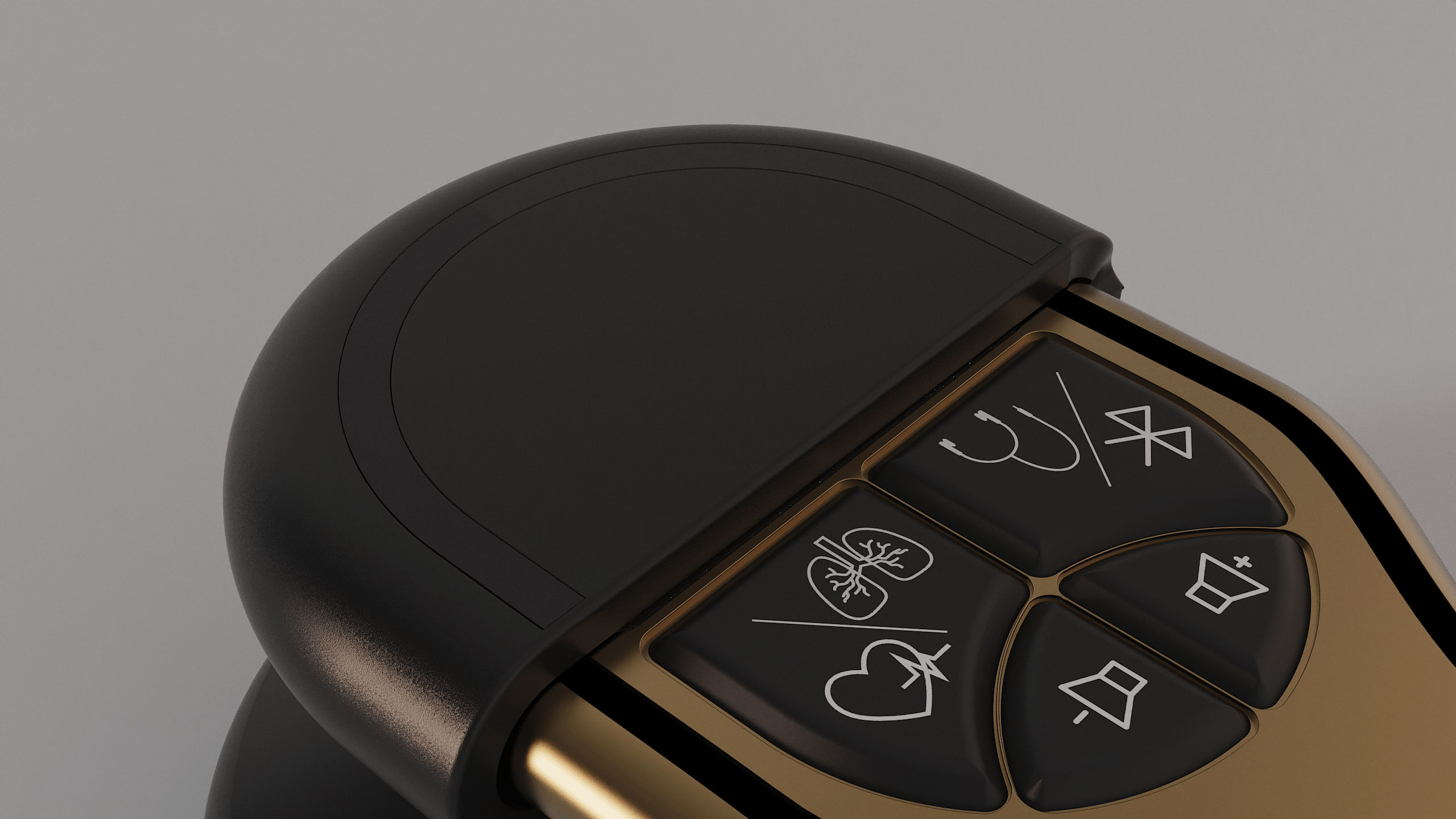

Toggle between two modes: Bluetooth and Auxiliary cord

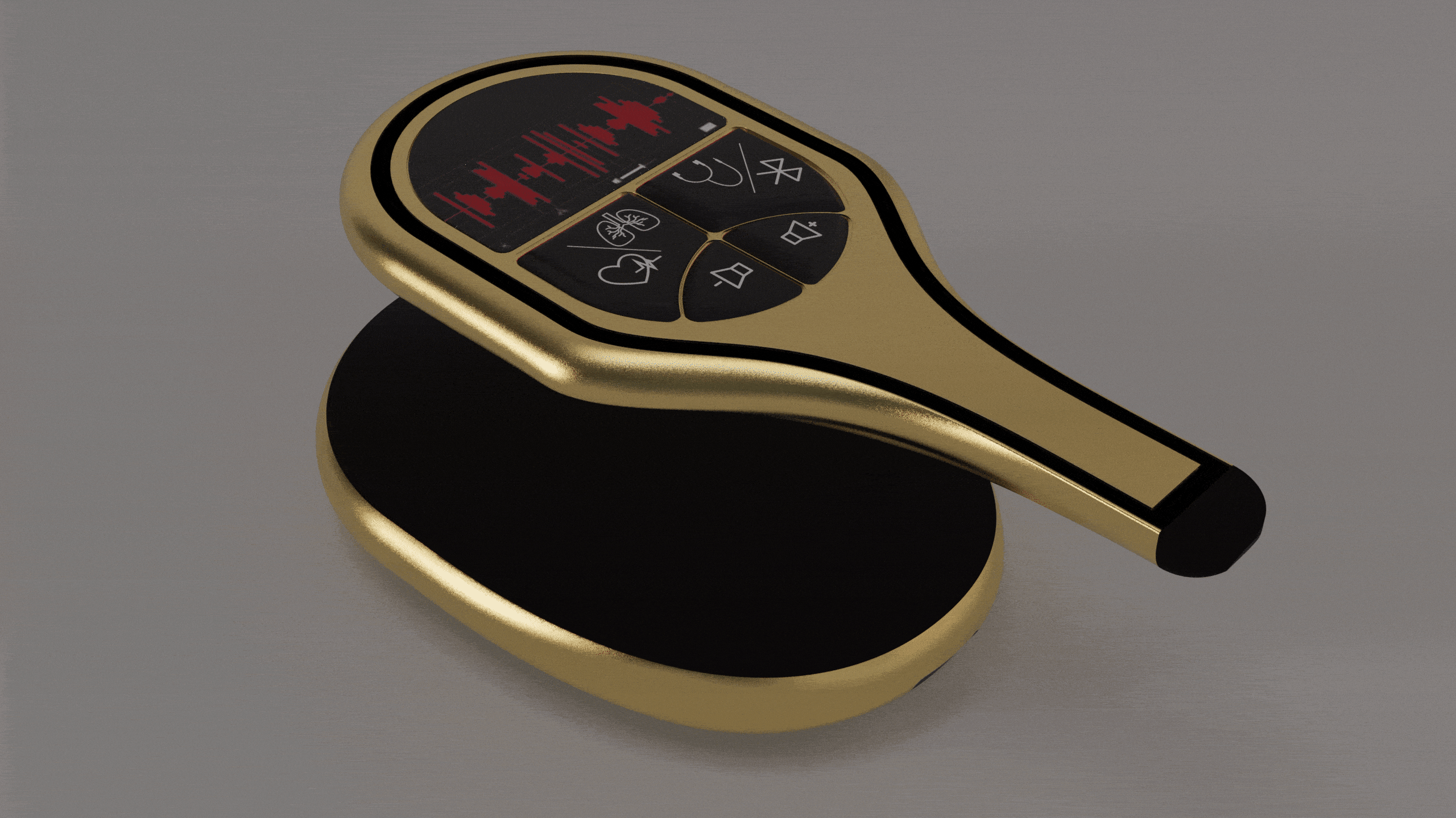

Toggle between two modes: heart monitor and respiratory monitor. Hold for 5 seconds to start recording.
Visible active live response (red for the heart monitor & blue for the respiratory monitor).
Auxiliary Port
USB-C Port
Lanyard loop
Case with a wireless charging dock.
Accessories
The Ilera-Scope can be fitted with a newly designed headset piece, enabling the user to connect the to the stethoscope's auxiliary cord
This aux cord housing lets the stethoscope fit within the housing.
The wireless charging dock will help the Ilera-Scope be more mobile, resulting in the users, being able to use the Ilera-Scope throughout the day with minimum plug-in charging needed.
The left side (green gauge bar) of the dock displays hows much the Ilera-Scope is currently charged, while the right (red gauge bar) shows how much battery is left in the charging dock.
ECG Sensors
Rubbery grip
Diaphragm
Colorways
Gold
Silver
Rose Gold
Indigo
Maroon
Held in three
different positions
System Connectivity
Paired
Paired
App Interface
Storyboard
1)
2)
4)
Remove the stethoscope from the case.
Hold the stethoscope to what suits you fit.
Toggle between the modes you want to use: for heart rate monitoring
for respiratory monitoring
Select which way you want to listen to the audio.
3)
5)
6)
7)
8)
Place the stethoscope on top of the targeted area.
Press “record” to start recordin, OR hold the mode button to record.
Place the stethoscope on top of the targeted area.
Analyze audio recording on computer and/or smartphone.
In Context Renders
Ilera-Scope
Function and Purpose
Cardiology
Pediatric
Veterinary
Sprague Rappaport
Select/ Lightweight
Types of Stethoscope Heads
Medical Product Classification
Manual stethoscopes
Electronic stethoscopes
*Please note: An electronic stethoscope amplifies internal body sounds, like the heart and blood flow.
-
A stethoscope is a medical device used to hear sounds generated inside the body, primarily from the heart and lungs.
-
It consists of just four main parts: ear tips, a tube, and a chest piece.
Simple
Cheap
Lightweight
Old
Poor hearing equality
Lack tech advancement
Benefits and Problems
Competitive Market
Thinklabs: One Digital Stethoscope
Eko DUO ECG + Digital Stethoscope
3M Littmann CORE Stethoscope(8480&8570)
-
$498.98
-
Fits in your hand
-
Amplifies over 100x
-
Designed to require just one or two charge cycles per week
-
$399
-
Eko DUO ECG + Digital Stethoscope with removable earpiece
-
USB charging cord & adapter
-
Eko software
-
$299-$349
-
40x amplification
-
Active noise canceling
-
share up to 120 seconds of auscultation via the free Eko app
Ideations
Simplistic display idea
Button configuration

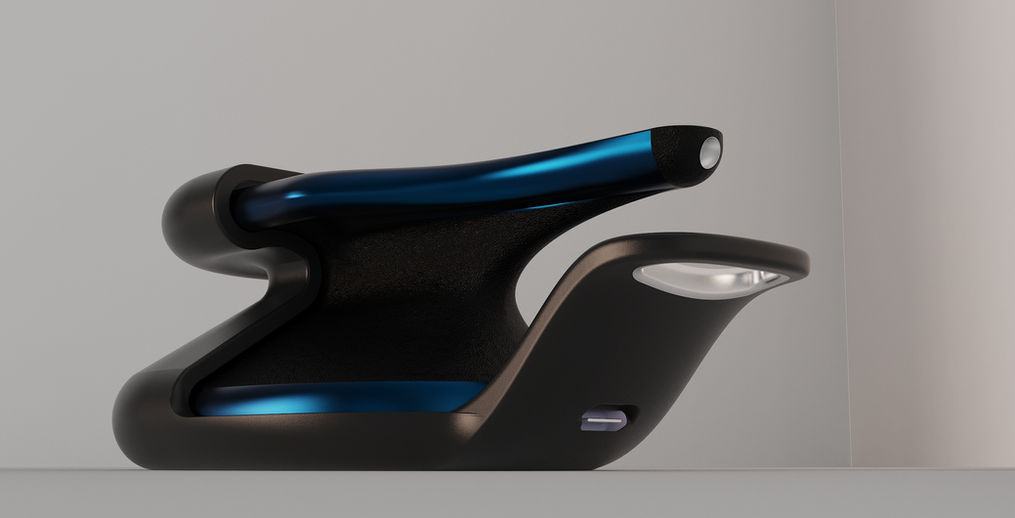

Final Design
About the Ilera-Scope
The familiar stethoscope is a practical medical tool, but it has become outdated in the age of 21st-century technology. Introducing the Ilera-Scope (with "lera" meaning health in Nigeria), a digital stethoscope that enables users to connect both wireless and wired headphones for enhanced audio clarity. It features...
